Ortomec

Harvester 7400electro

Self-propelled on tracks

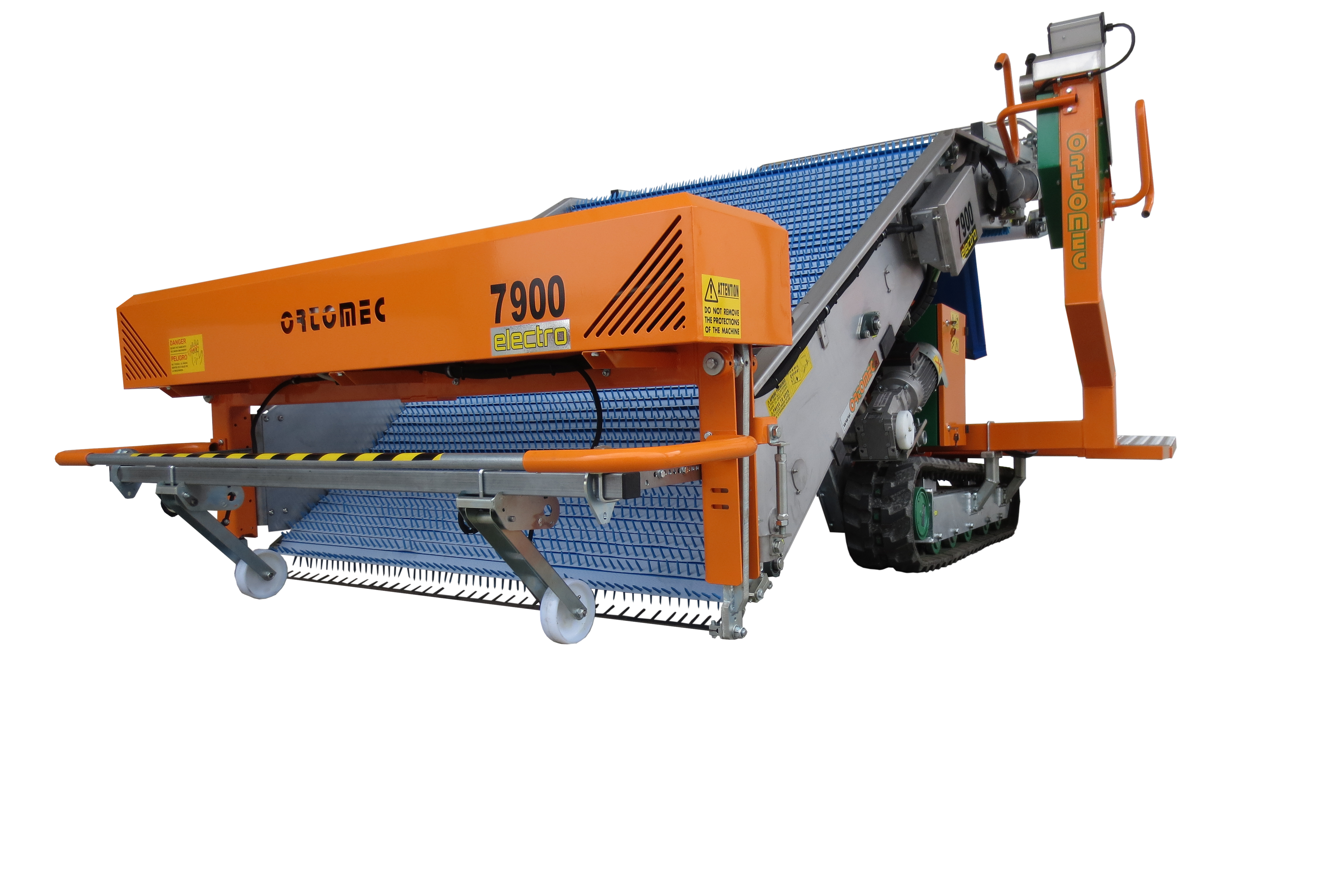

Machine in “LATTUGA” version, for the harvest of various types of head lettuce.

  • Oscillating sungle cutting blade with hydraulic movement;
  • Ortomec polyurethane collection belt with rubber nails, food-grade certified;
  • Control of cutting height by means of ORTOMEC system of proportional electronic sensors controlled by PLC board;
  • Balance system”- cutting height variable in work phase, on right or left from control column with single gradual command and return to balance it;
  • Conveyor belt with adjustable speed;
  • Conveyor belt food-grade certified;
  • Conveyor belt frame in stainless steel.

Main Features

  • Self-propelled tracked harvester in compact version;
  • Powered by 2 electric batteries 24 V – 240 Ah each one, installed on a sliding carriage for removal from their compartment;
  • Batteries filling up by centralized point system;
  • Traction with two 48V electric three-phase asynchronous motors of new generation (without brushes) ;
  • Battery chargers incorporated on the machine, powered 220 V;
  • Electric system situated in a steel box with seal closing;
  • Self-diagnosis system of the electric system with display on control column;
  • Rubber tracks with adjustable track: from 115 to 195 cm;
  • Track dimensions: 20 cm width, 180 cm length;
  • Cutting width: 130 cm to 180 cm;
  • Painted machine frame structure;
  • Rear deck 150 cm length, 400 kg maximum load capacity, closable 90°;
  • Multifunction joystick;
  • Touch screen display;
  • Total weight of machine: approx. 1,500 kg;
  • Ground clearance: 25 cm;
  • Working speed setting from 0 to 4 km/h with single command on control column with electronic management;
  • Steering through mini-wheel, feed movement through electronic lever
  • Track rotation on the spot;
  • Temporary work stop system and restart at the same speed;
  • LED light system complete with nr. 3 lights.
