Ortomec

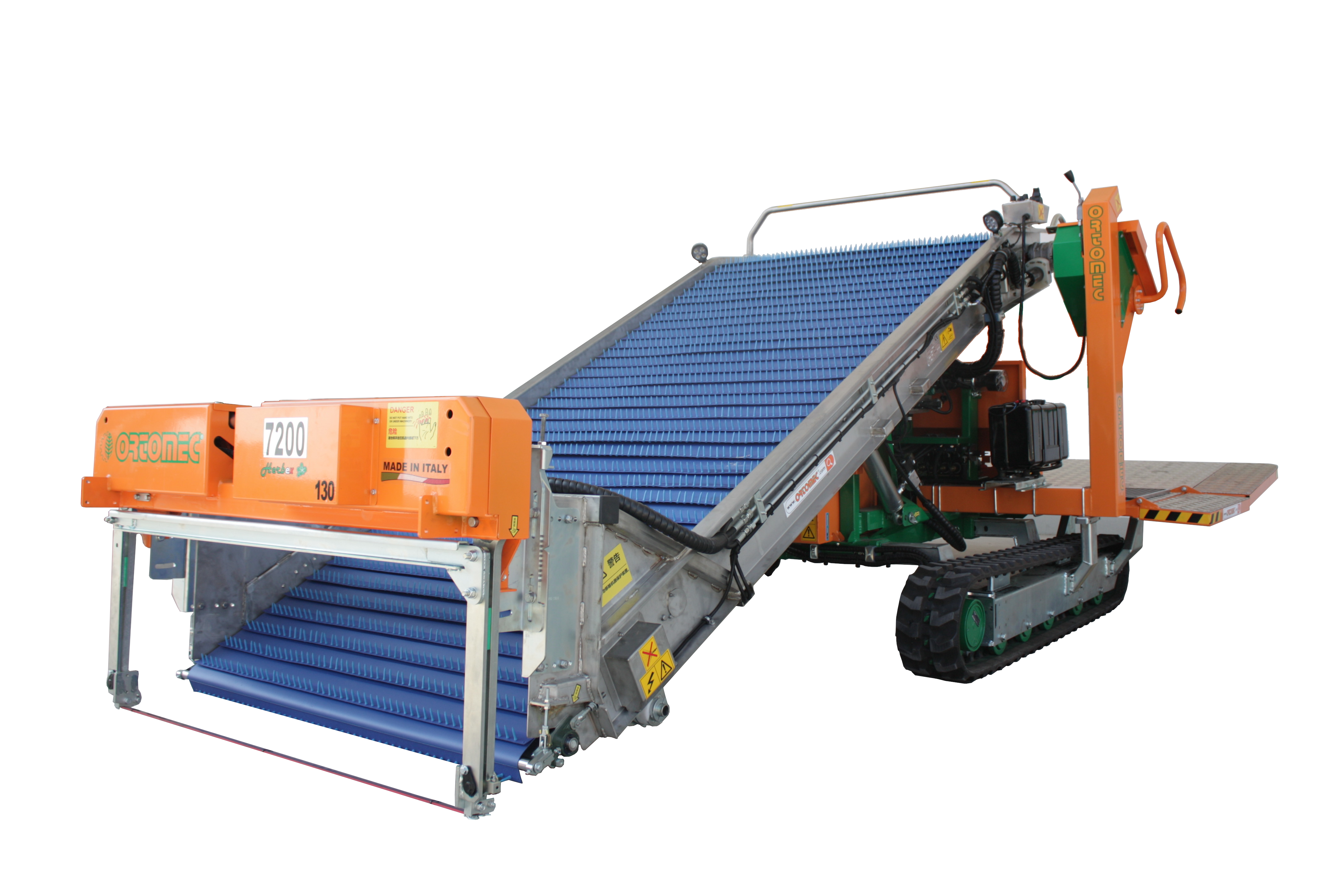

Harvester 7200

Self-propelled on tracks

Machine in ÔÇťLATTUGAÔÇŁ version, for the harvest of Various types of head lettuce.

  • Oscillating single cutting blade with hydraulic movement;
  • Ortomec polyurethane collection belt with rubber nails, food-grade certified;
  • Control of cutting height by means of system of electronic sensors;
  • Cutting blade speed adjustment by means of hydraulic valve;
  • Conveyor belt speed adjustment from driverÔÇÖs seat by means of manual control valve;
  • Conveyor belt frame in stainless steel.

Main Features

  • Self-propelled tracked harvester in compact version;
  • Rubber tracks with adjustable gauge from 115 to 195 cm;
  • Track dimensions: width 20 cm., length 180 cm;
  • Cutting width: 130 cm to 180 cm;
  • Painted machine frame structure;
  • Rear deck L. 110 cm. with max. load capacity of 400 kg, closable 90┬░;
  • Total weight of machine: approx. 1000 kg;
  • 25 HP Diesel engine;
  • Ground clearance: 25 cm;
  • Speed: 0 to 5 km/h with gradual variation;
  • Steering and forward movement with joystick;
  • Track rotation on the spot;
  • Temporary work stop system with restart of same speed;
  • LED light system complete with nr. 3 lights.

scarica
Disegno
dimensionale

Guarda il video
