Ortomec

Harvester 9000

Self-propelled on tracks

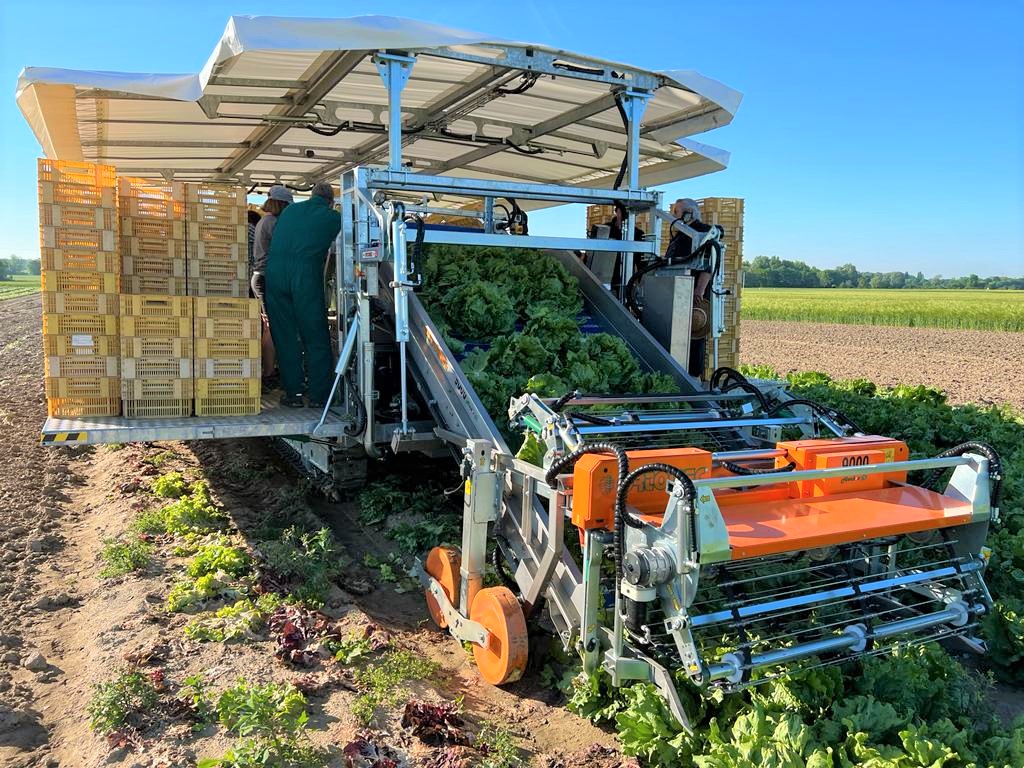

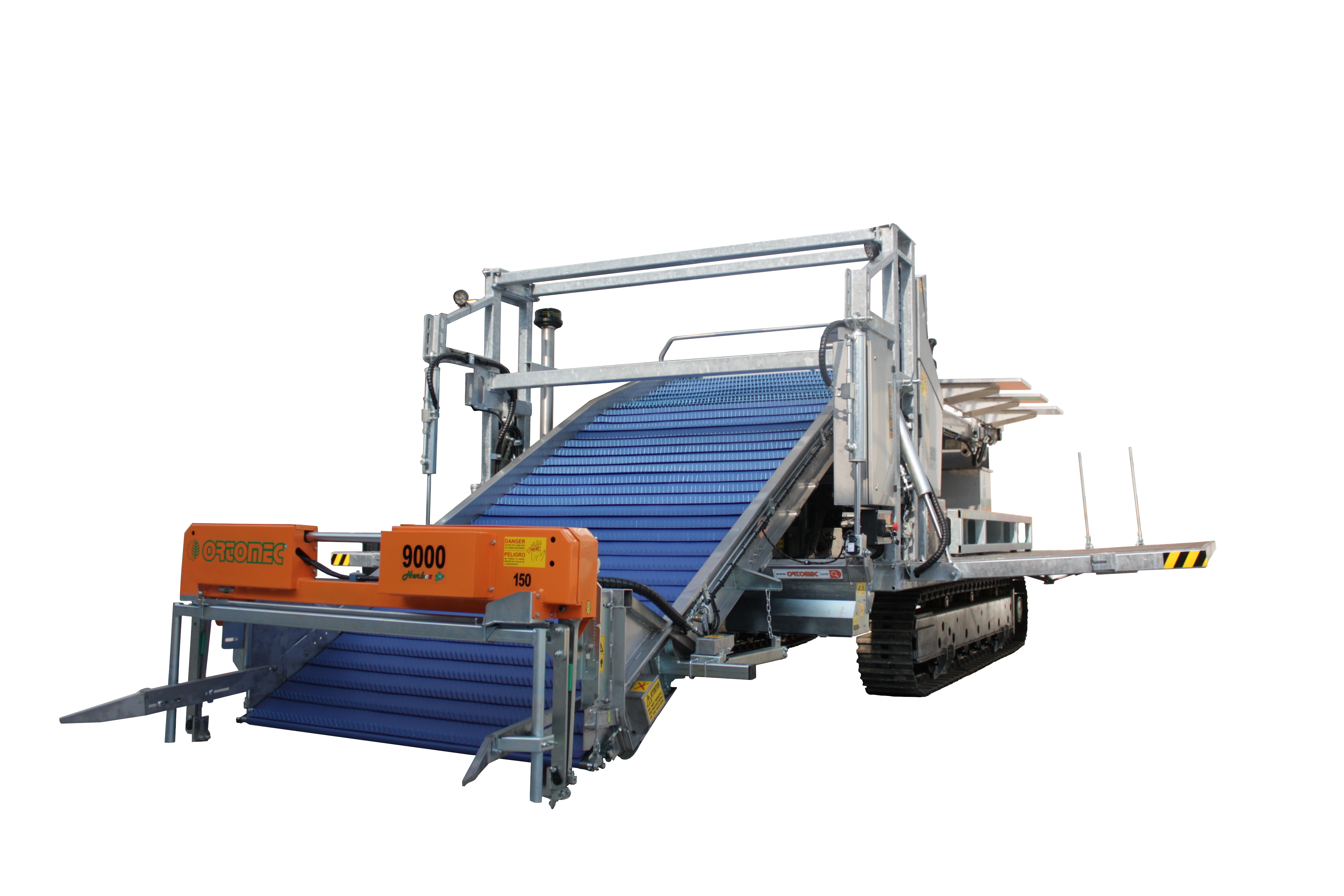

Machine in “LATTUGA” version, for the harvest of various types of head lettuces.

  • Oscillating single cutting blade with hydraulic movement;
  • Ortomec polyurethane collection belt with rubber nails, food-grade certified;
  • Lubrication of the cutting arch with centralised system;
  • Control of cutting height by means of system of electronic sensors;
  • Hydraulic conveyor belt with adjustable speed by means of valve;
  • Conveyor belt food-grade certified;
  • Harvesting head frame in stainless steel.

Main Features

  • Tracked wagon on fixed rollers (or movable as optional): steel tracks, width: 20, 25 or 30 cm, length 270 cm; rubber tracks, width 30 cm, length 270 cm;
  • Harvesting width: from 120 to 180 cm;
  • Fixed gauge from 145 cm to 210 cm;
  • 74 HP Diesel engine;
  • Steering and forward movement by means of joystick;
  • Working/loading deck dimensions: 300-350-400-450 x 420-470 cm (with side platforms opened);
  • Side platforms width: 100 or 125 cm each one;
  • Side platforms with hydraulic opening/closing;
  • Speed: from 0 to 6 km/h with gradual variation;
  • Hot galvanised machine frame;
  • Stainless steel crankcase and hydraulic oil reservoir;
  • Multifunction joystick;
  • Touch screen display;
  • Temporary work stop system with restart of same speed;
  • N. 1 hydraulic connection for auxiliary service;
  • Ground clearance: 32 cm;
  • Total weight of machine: approx. 4.000 kg;
  • LED light system complete with nr. 3 lights.

Watch the video
