8300 Harvester Leaf version
Self-propelled on 4x4 wheels
“LEAF” version for harvesting leafy vegetables such as arugula, spinach, and baby lettuce. Stainless steel cutting system available in three types (A: 21 cm, B: 31 cm, F: 45 cm) with a blade-belt and height adjustable via electronic sensors and the ‘Balance system’. Hydraulic conveyor belt with adjustable speed, smooth and food-certified, with cleaning and residue recovery in a quick-discharge container. The head frame is made of stainless steel.
Key features

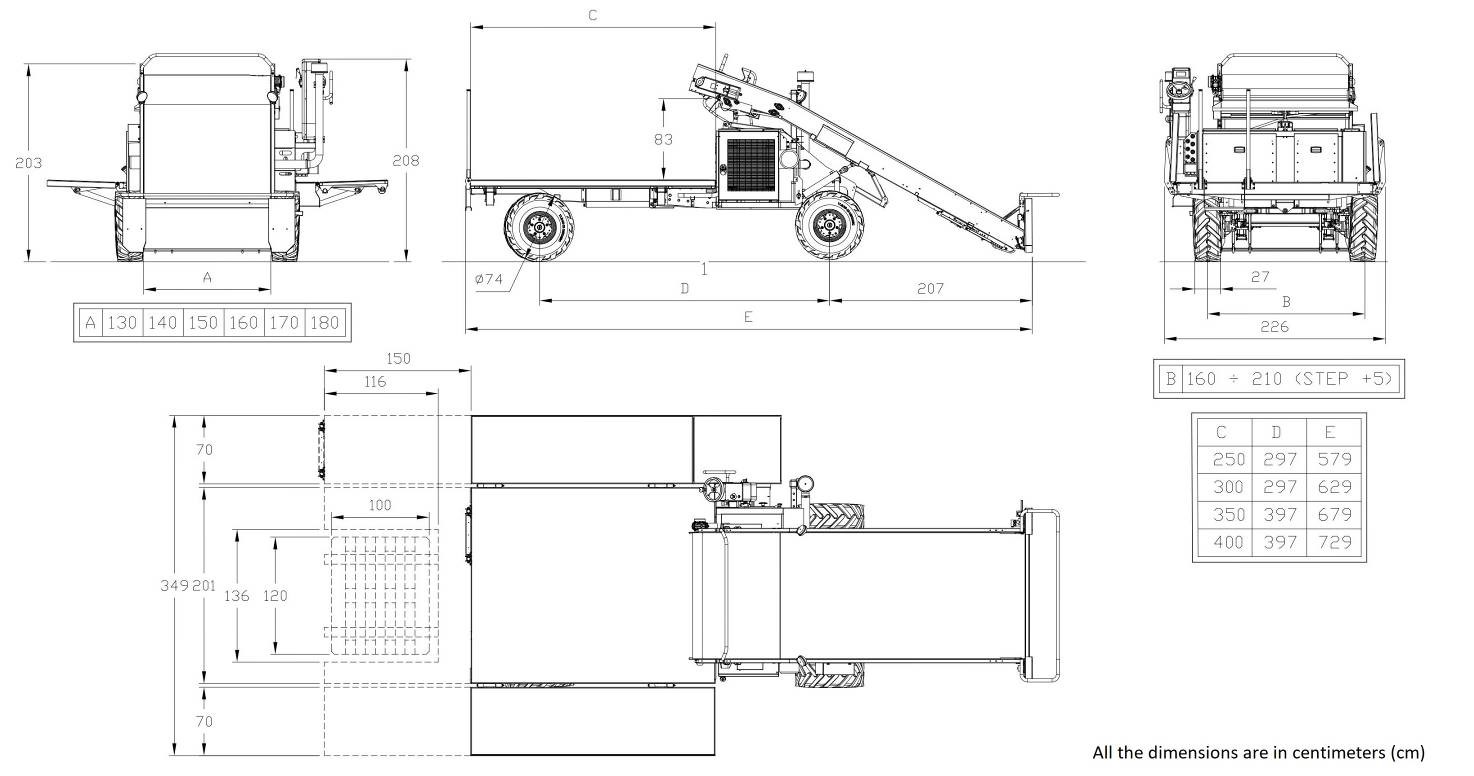

Fixed wheelbase, from 150 to 210 cm;
Gathering width from 130 to 180 cm;
Hot-dip galvanised machine frame
Total weight of the machine: approx. 2,200 kg;
74 HP diesel engine
Steering wheel drive;
Proportional advancement via manual lever;
“Cruise control” - Working speed setting from 0.2 to 7 km/h with a single control on the electronically controlled steering column;
Closed-circuit hydraulic system;
Double variable flow pump for feed;
4WD hydraulic transmission with four hydraulic gear motors;
Four-wheel steering;
Multifunction joystick;
Touch screen;
Wheel differential locking effect;
Front and rear wheels: 11.0/65-12 (height 65 cm - width 27 cm) (5) - 27x10-15.3 (height 75 cm - width 24 cm);
External positioning of filters for quick inspection and replacement;
Platform dimensions: 250–300–350–400 (length) x 350 cm (width, with side platforms open);
Side steps, each 70 cm wide, with hydraulic opening;
Clearance from the ground: 40 cm.
LED lighting system complete with 3 headlights.
