Harvester 3000 Leaf version
Compact self-propelled on wheels
Harvester for leafy greens equipped with electronic sensors for automatic adjustment of the cutting height and direct control from the driver’s seat via an electric button. The harvester head is made of stainless steel, while the food-certified conveyor belt is hydraulically operated with adjustable speed.
Key features
Fixed wheelbase, from 105 to 210 cm;
Hot-dip galvanised machine frame;
Total weight of the machine: approx. 1,000 kg;
18 HP diesel engine;
Steering wheel drive;
Adjustable forward speed from 0.6 to 6 km/h via manual lever in the driver's seat;
Hydrostatic drive on all 4 wheels;
Tilting front axle;
External positioning of filters for quick inspection and easy replacement;
Tyres: Front: 5.00-15 TM - Rear: 6.50/80-15 TM;
Foldable rear footboard, length 80 cm + fixed footboard 50 cm;
Removable side guide plate, to allow transport of the machine;
Upper cassette platform;
Mobile cassette holder under the collection belt;
Tanks for recovering any fluid leaks (engine oil, hydraulic oil, diesel fuel, etc.).

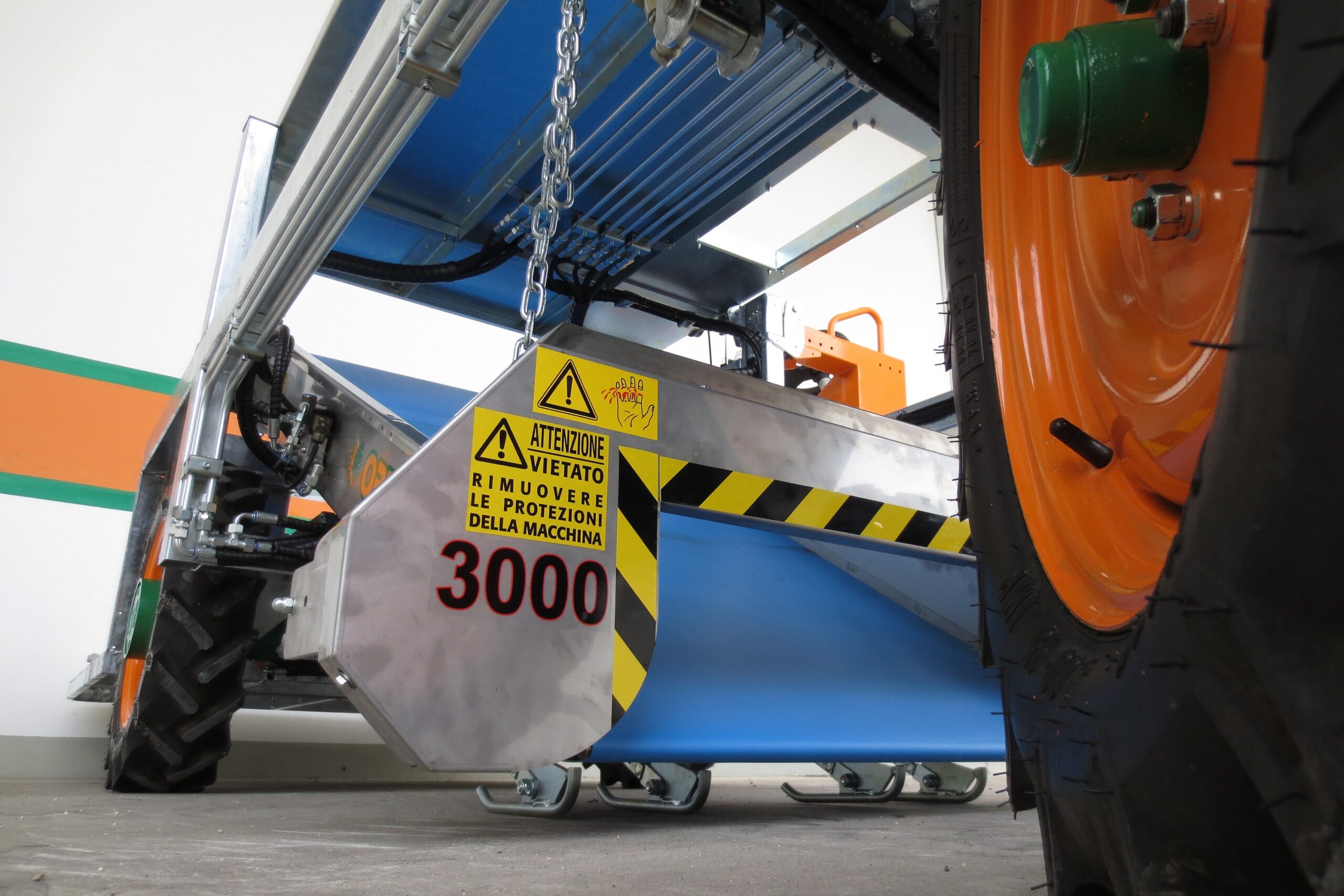

Stainless steel cutting system;
Type A with a working height of 21 cm with 2 pulleys; Type B with a working height of 31 cm with 2 pulleys;
Belt saw cutting system;
Cleaning the collection conveyor belt of residues during the return phase.
